Spilka Classic Window Hinge Size 2 (195mm)

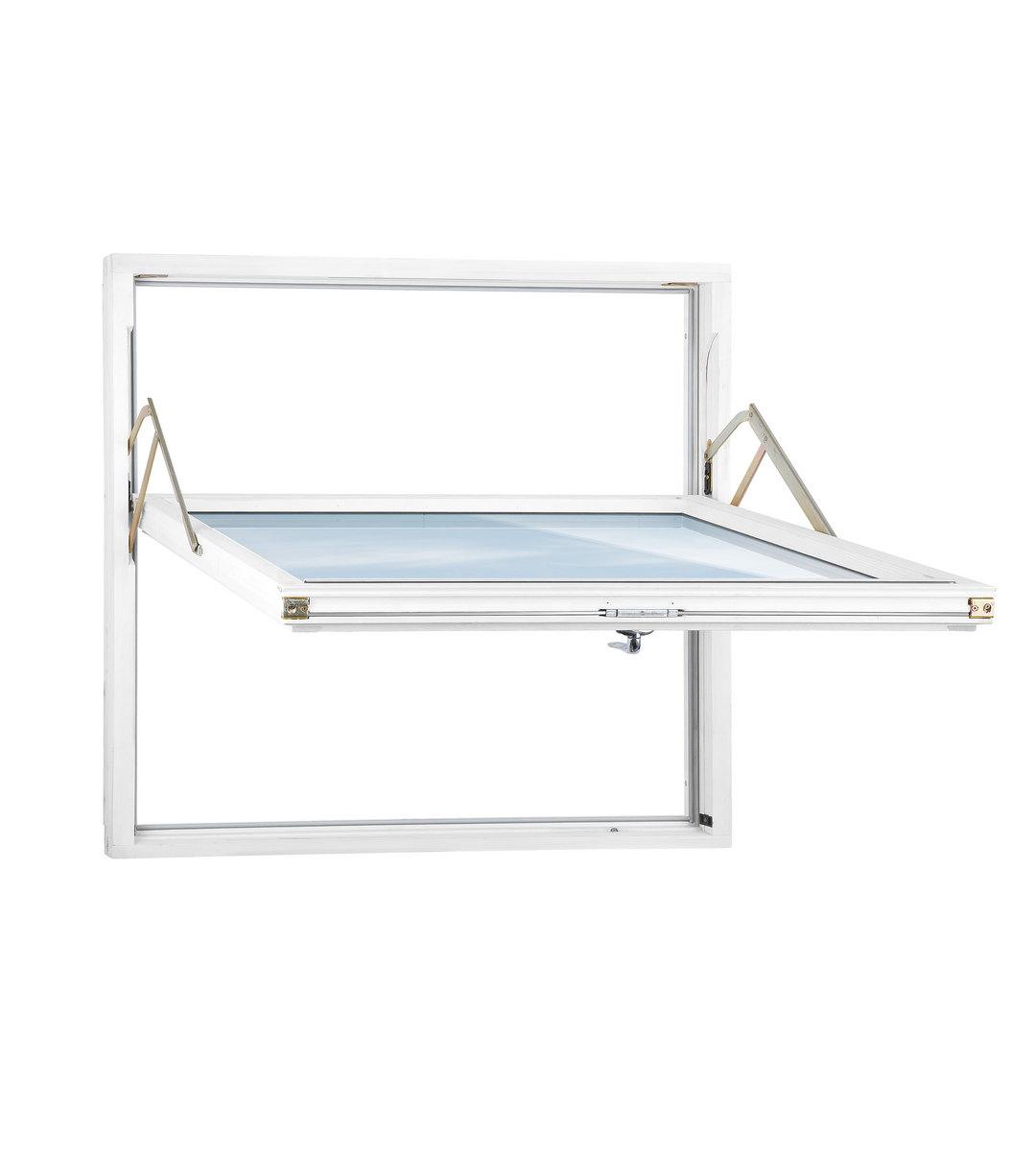

Spilka Classic hinges are used in horizontal top hung fully reversible windows. The most widely used window profile is made of timber, but additionally there are profiles in aluminium and Upvc. Sold as a pair.

Features

• The window is opened by a handle on the lower part of the casement which operates an espagnolette system, this also allows for secure ventilation
• Spilka Classic hinges incorporate a child safety lock as a standard. This limits the initial opening of the window to a maximum of 100 mm and re-engages when the sash reverses 180 degrees to allow the outside pane of glass to be cleaned
• The hinges are available in 7 sizes (S1-S7) in a range of standard colours, allowing windows up to 388 mm high and maximum of 1588 mm wide

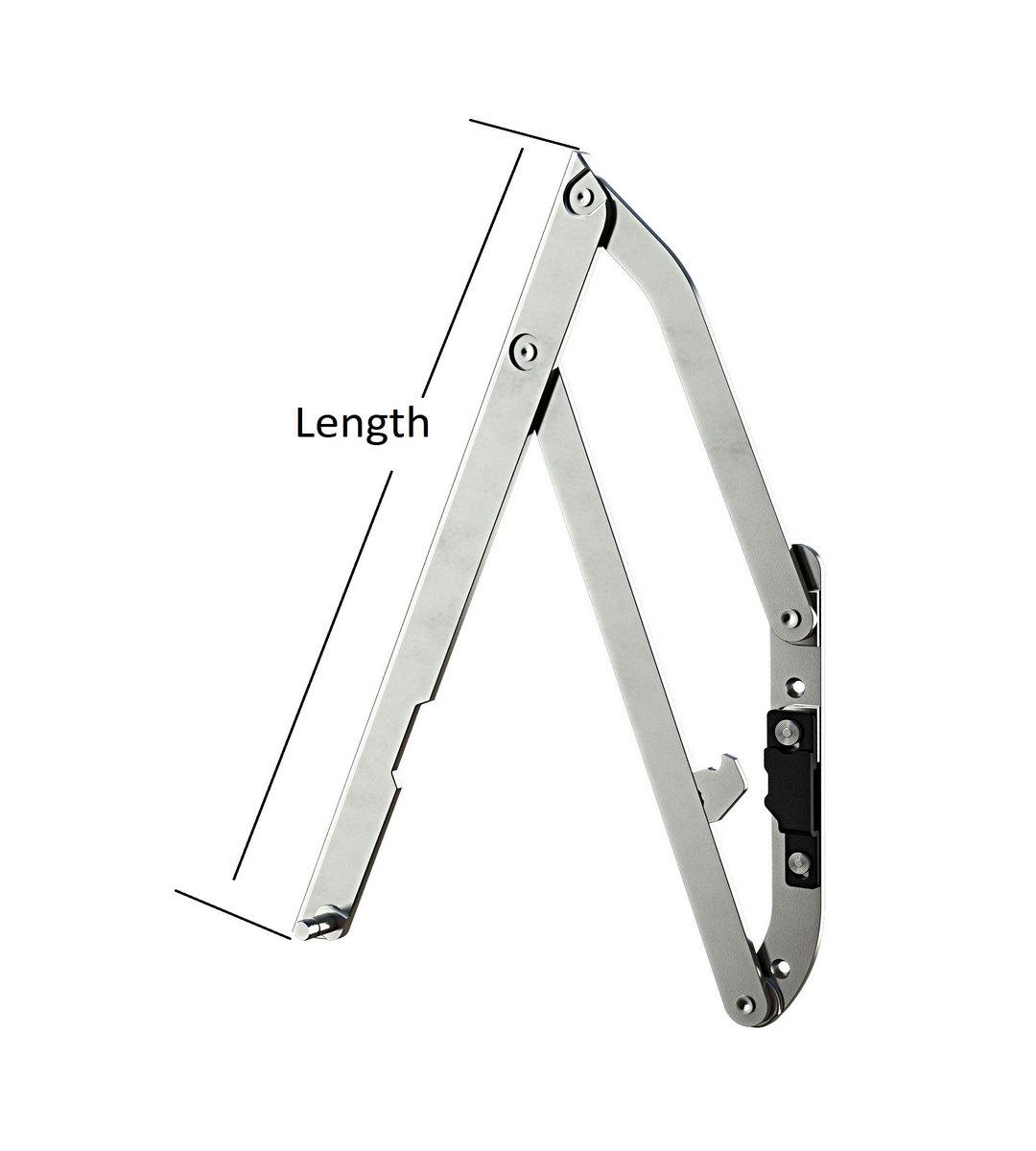

• The hinge size is calculated by measuring the length of the arm located on the frame, this hinge is also identified by the Norway A/S stamp on the arm
