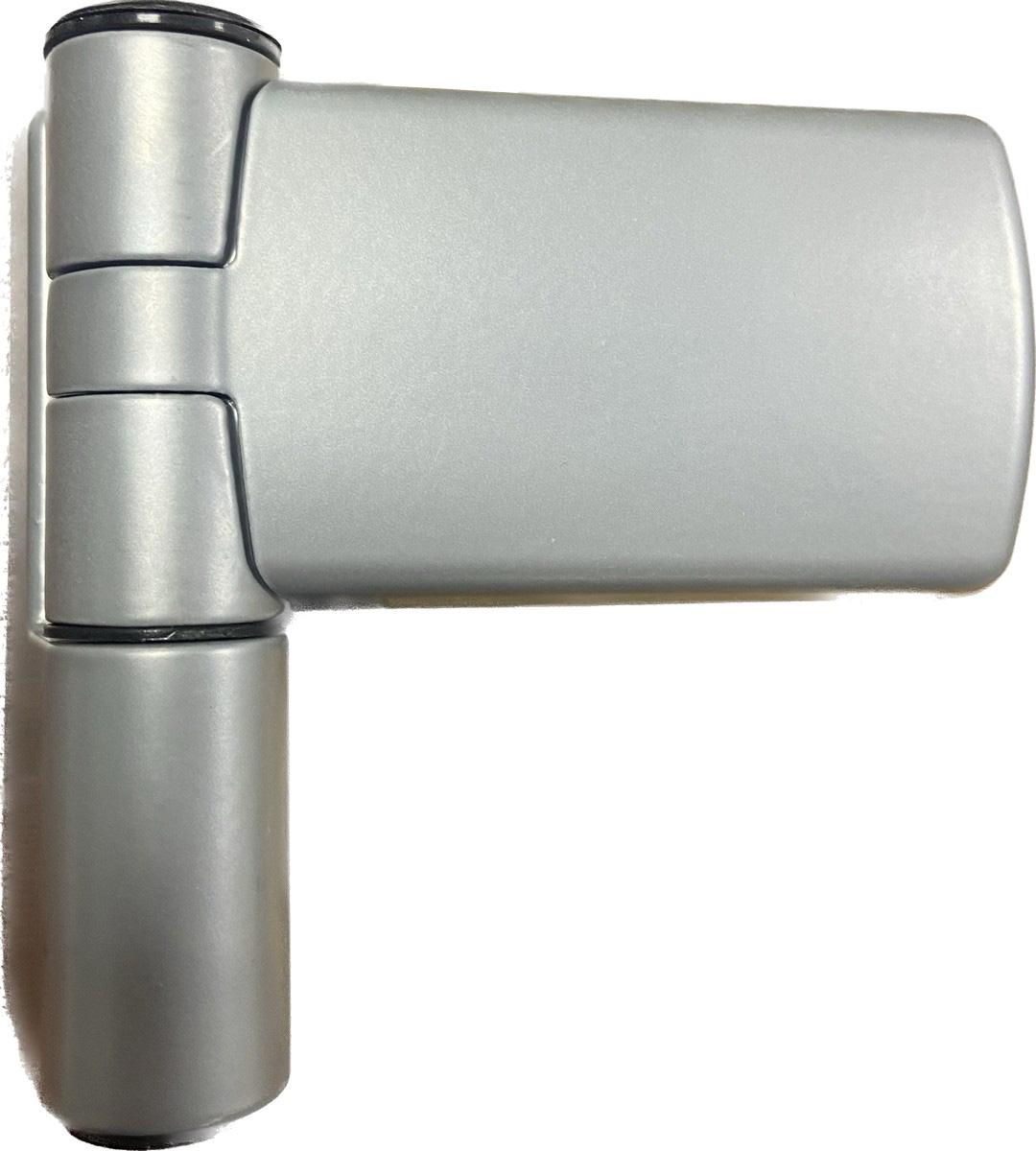

Trojan 0785-2003-SL Silver Patriot Plus 22mm Hinge

The Patriot Plus high security door hinge offers a slim, unobtrusive appearance with an improved clearance for plaster line and finishing. Easy, accurate and independent 3D adjustment means no visible gap during height adjustment, giving better aesthetics and stability. It is supplied pre-assembled and ready to fit, dramatically speeding up the fitting process.

The hinges are non-handed, with a slim frame plate and no visible fixings.

Features

• PAS 24 accredited as part of a door assembly
• Fitter and installer friendly with a patented anti-lift feature
• Additional location pins to reduce twist and full 3D adjustment
• Vertical adjustment with no gap created between flag and base
